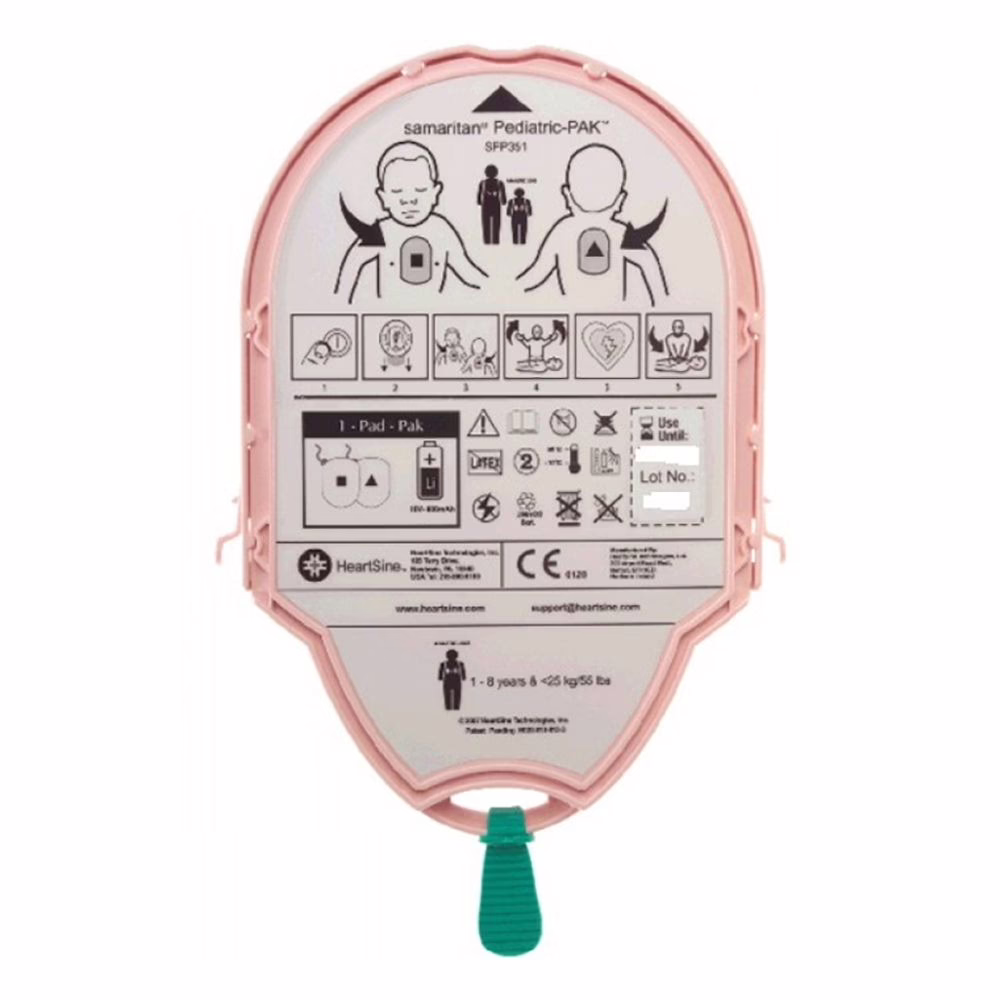

The Heartsine Paediatric Pad-Pak is designed for the treatment of infants and children from 1-8 years old or less than 25kg in weight. When the paediatric PAD-PAK is inserted into the AED energy delivered is reduced to 50J.

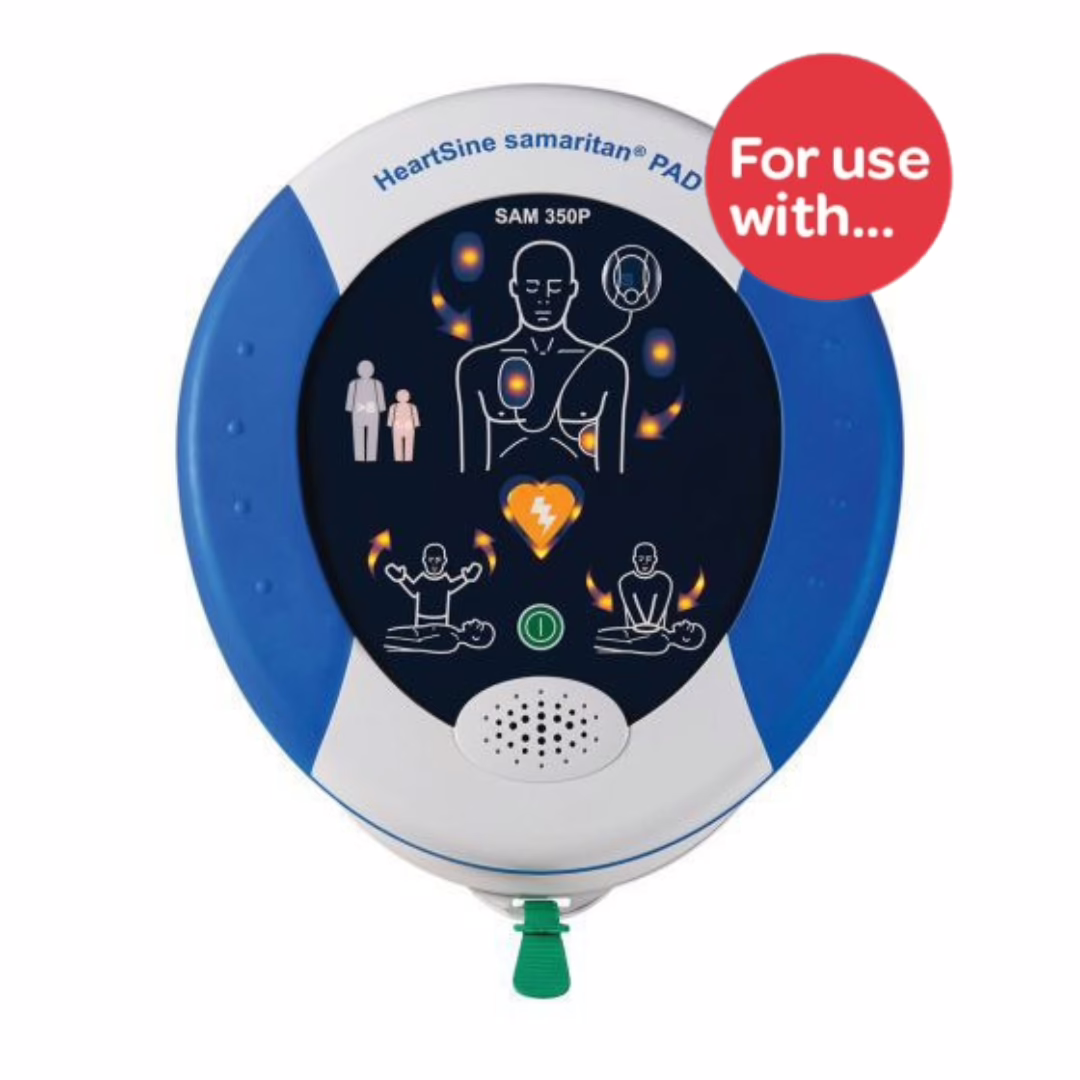

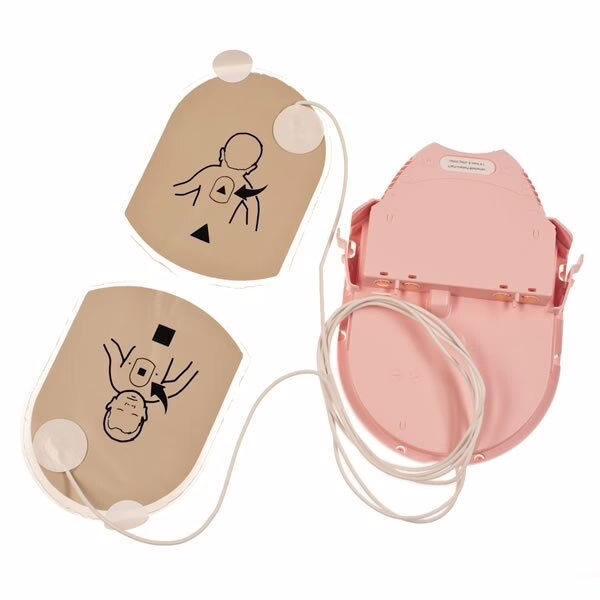

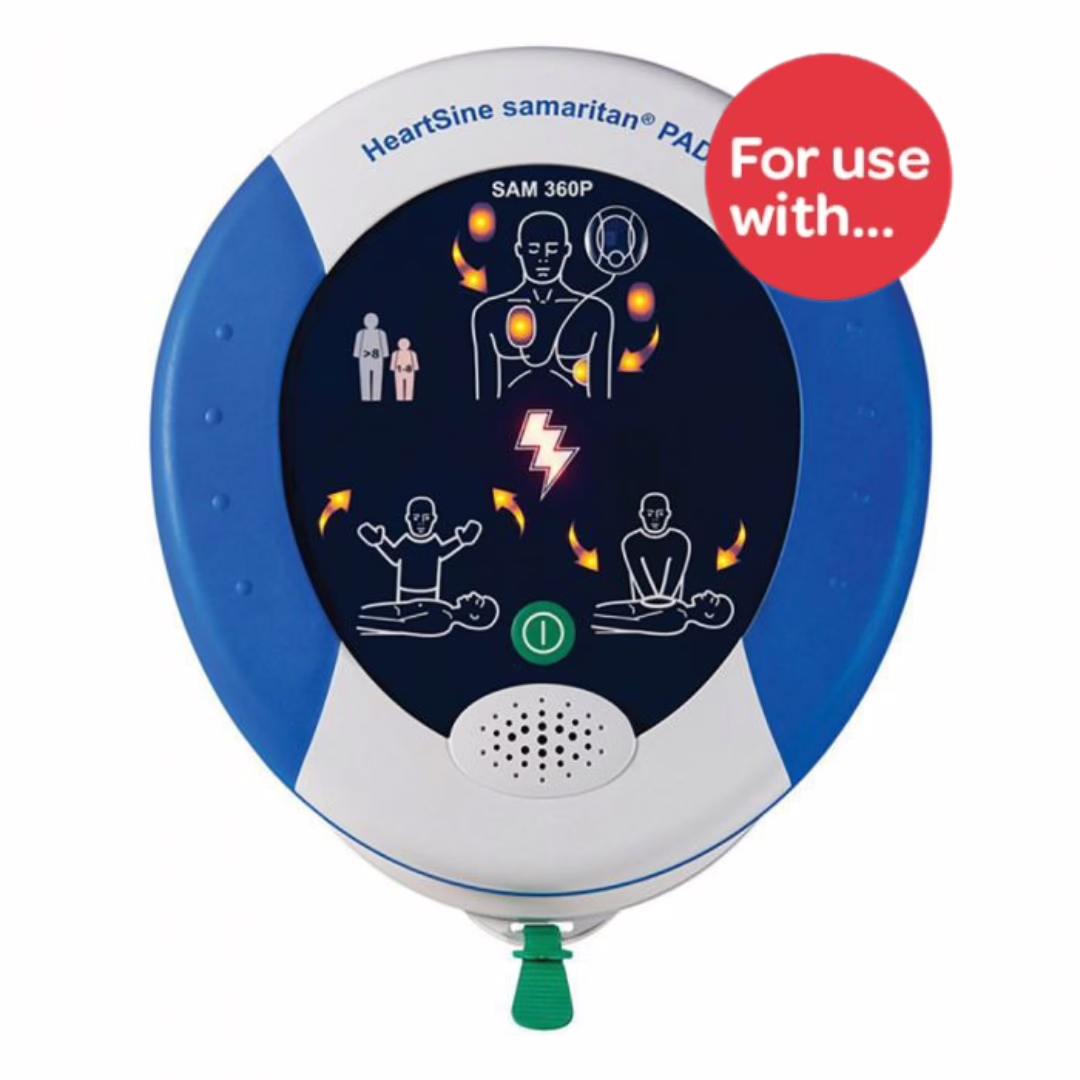

The Paediatric PAD-PAK is unique to Heartsine by incorporating the AED electrodes and batteries into one single-use cartridge called the Pad-Pak™. The advantage to the Pad-Pak is that there is only one date to monitor and only one item to replace upon expiration or after use. Compatible with the Heartsine 300P, Heartsine 350p, Heartsine 360P and Heartsine 500P.
Technical Information:
Weight: 0.2kg
Battery Type: Disposable single-use combined battery and defibrillation electrode cartridge. Lithium manganese dioxide.
Battery Capacity: >60 shocks at 200J or 6 hours of battery use
Electrode Type: Single use pre attached combined ECG sensor/defibrillation pad
Electrode Cable Length: 1M (3.3 feet)

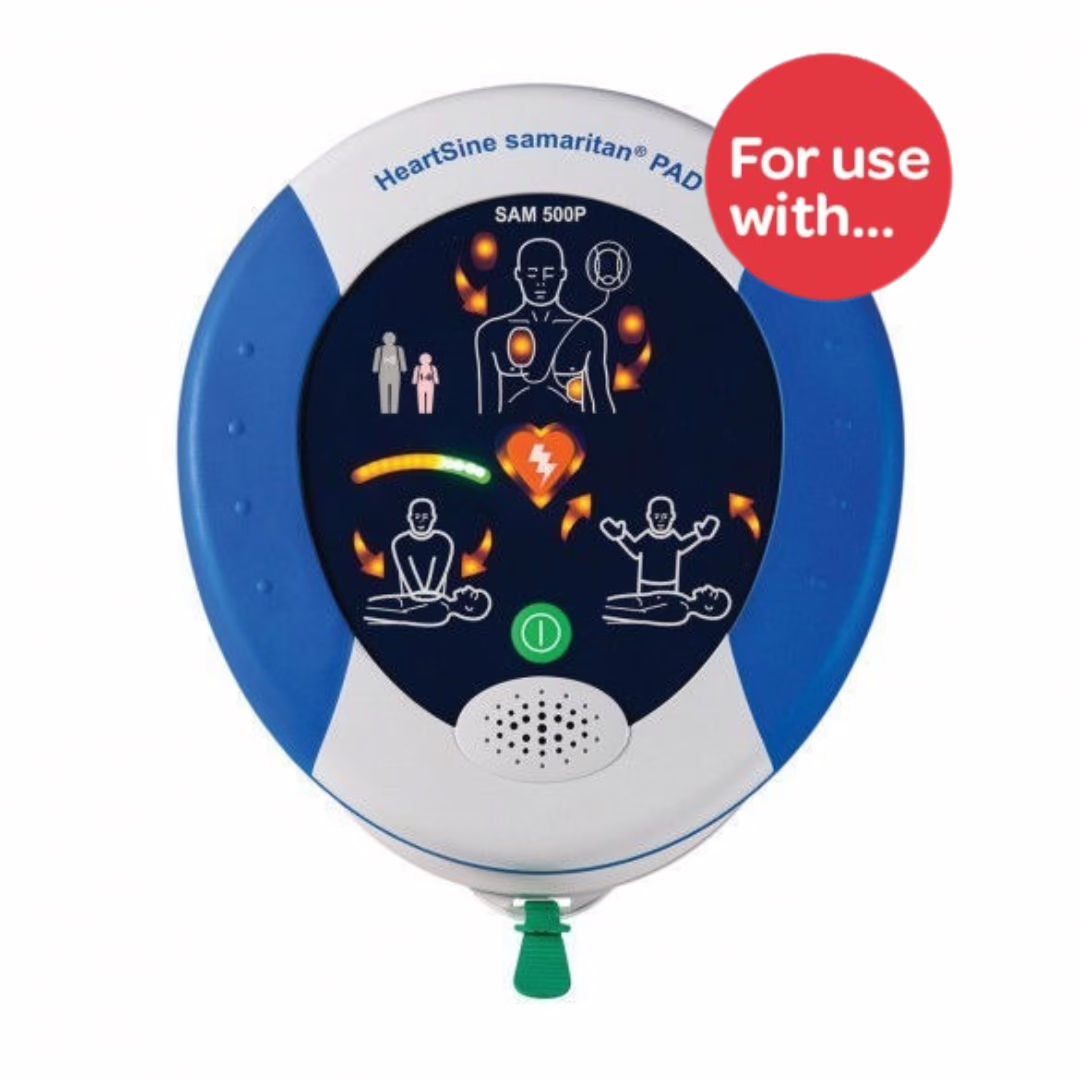

Please note: When used with the HeartSine Samaritan PAD 500P, the defibrillator’s CPR advisor feedback is disabled due to the difference in a child’s physique.
