- Published:28 February 2025

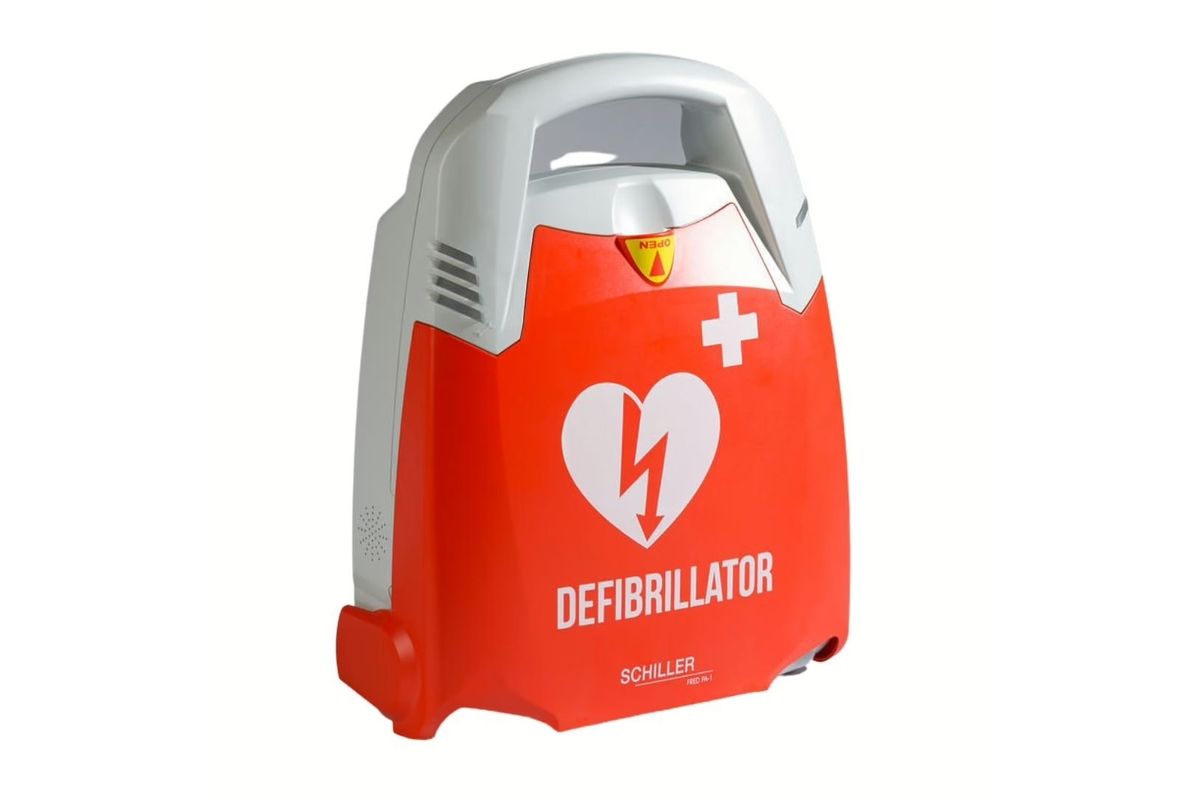

The SCHILLER FRED PA-1 Semi-Automatic Defibrillator is a high-quality, easy-to-use life-saving device designed for public access defibrillation. This semi-automatic unit is equipped with step-by-step voice guidance, pre-connected electrode pads, and real-time CPR feedback, making it an ideal choice for both trained and untrained responders. To ensure it operates optimally in an emergency, understanding common issues and their solutions is essential.
This troubleshooting guide outlines the most frequently encountered problems with the SCHILLER FRED PA-1, their causes, and practical solutions.
Key Features of the SCHILLER FRED PA-1 Semi-Automatic Defibrillator
Before diving into troubleshooting, it is essential to understand the core features of the device:

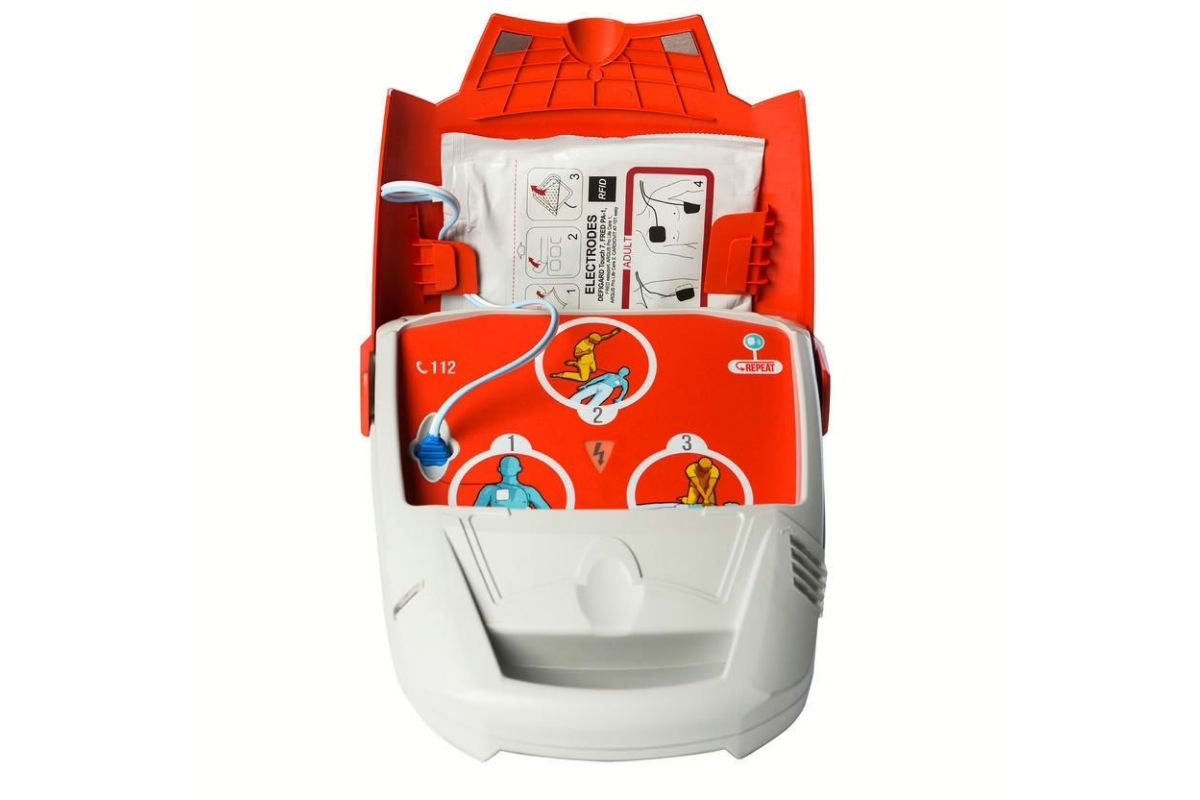

- Preconnected Electrodes – The device comes with pre-connected Schiller Adult Pads with RFID Tag, ensuring a faster response during emergencies.
- Semi-Automatic Shock Delivery – The defibrillator assesses the patient’s heart rhythm and prompts the user to press the shock button if a shock is required.
- CPR Feedback – Provides a metronome and real-time feedback on chest compressions using impedance variation through the electrode pads.
- Automatic Self-Testing – The device performs routine self-checks to ensure it remains in a rescue-ready state.
- IP55 Rating – Resistant to dust and water, making it ideal for various environments.
- Long Battery Life – The Schiller FRED PA-1 Lithium Non-Rechargeable Battery Pack has a standby life of up to 6 years.
- Multilingual Capability – The unit offers tri-language settings for international usability.
For a detailed product overview, visit the SCHILLER FRED PA-1 product page.
- 28 February 2025
Common Issues and Their Solutions
1. Device Fails to Power On
Possible Causes:
- Battery is depleted or improperly installed.
- Internal system fault.
Solutions:
- Ensure the Schiller FRED PA-1 Battery is correctly installed. If the device does not turn on, remove and reinsert the battery.
- If the issue persists, replace the battery with a new one from here.
- If the device still does not power on, consult the SCHILLER extended warranty or contact technical support.
2. Self-Test Failure or Error Indicator
Possible Causes:
- Expired electrode pads.
- Battery failure.
- Device software issue.
Solutions:
- Replace the Schiller Adult Pads with RFID Tag if they are past their 2-3 year shelf life (Purchase replacement pads).
- Ensure the battery is not low; replace if needed.
- If the issue persists, restart the device. If unresolved, refer to the user manual for troubleshooting steps or contact support.
3. Pads Not Recognised or Connection Error
Possible Causes:
- Pads are not correctly attached to the patient.
- RFID tag is not recognised.
Solutions:
- Verify that the pads are firmly placed on the patient’s chest and making full contact with the skin.
- Check if the pads are expired or damaged and replace them if necessary.
- Use only Schiller Adult Pads with RFID Tag for compatibility.
4. Shock Button Not Responding
Possible Causes:
- The device has determined that a shock is not needed.
- Internal software or hardware malfunction.
Solutions:
- The FRED PA-1 only delivers a shock when a shockable rhythm is detected. If prompted, continue CPR as instructed.
- If the button remains unresponsive despite a shockable rhythm being detected, restart the device.
- If the issue persists, contact technical support.
5. Audio or Visual Prompts Malfunctioning
Possible Causes:
- Speaker malfunction.
- Device software issue.
Solutions:
- Restart the device and perform a manual self-test.
- If prompts still do not function, check your warranty coverage and contact support.
6. Low Battery Warning Too Soon
Possible Causes:
- Battery is not fully inserted.
- Battery is near the end of its life.
Solutions:
- Remove and reinsert the battery to ensure proper connection.
- Replace the battery if the issue persists. Check battery options here.
7. Delayed Shock Delivery
Possible Causes:
- Pads are not placed correctly.
- Conductive surfaces interfering with analysis.
Solutions:
- Recheck pad placement using the illustrated guides on the pads.
- Ensure the patient is isolated from metal surfaces or conductive materials.
8. Device Exposed to Water or Excessive Dust
Possible Causes:
- The FRED PA-1 is rated IP55, meaning it is resistant to dust and water but not fully waterproof.
Solutions:
- Wipe the device dry immediately.
- Avoid exposing the defibrillator to environments beyond its IP55 rating.
- If the device malfunctions after exposure, consult the SCHILLER extended warranty.
Preventative Maintenance for Optimal Performance
Monthly Checks:
- Inspect the battery and electrode pad status.
- Verify that the device readiness indicator is green.
- Perform a self-test to ensure the device is operational.
Storage Recommendations:
- Store the defibrillator in a dry, temperature-controlled environment.
- Keep it in a protective carry case to prevent accidental damage.
Regular Updates:
- Refer to the SCHILLER FRED PA-1 user manual for the latest troubleshooting and maintenance updates.
Related Products & Accessories:
- SCHILLER FRED PA-1 Semi-Automatic Defibrillator
- SCHILLER FRED PA-1 Battery
- SCHILLER Adult Pads with RFID Tag
By following these troubleshooting steps and maintaining the device properly, you can ensure that your SCHILLER FRED PA-1 Semi-Automatic Defibrillator is always rescue-ready for life-saving situations. For further assistance, visit Defib World or contact SCHILLER technical support.
