- Published:12 March 2025

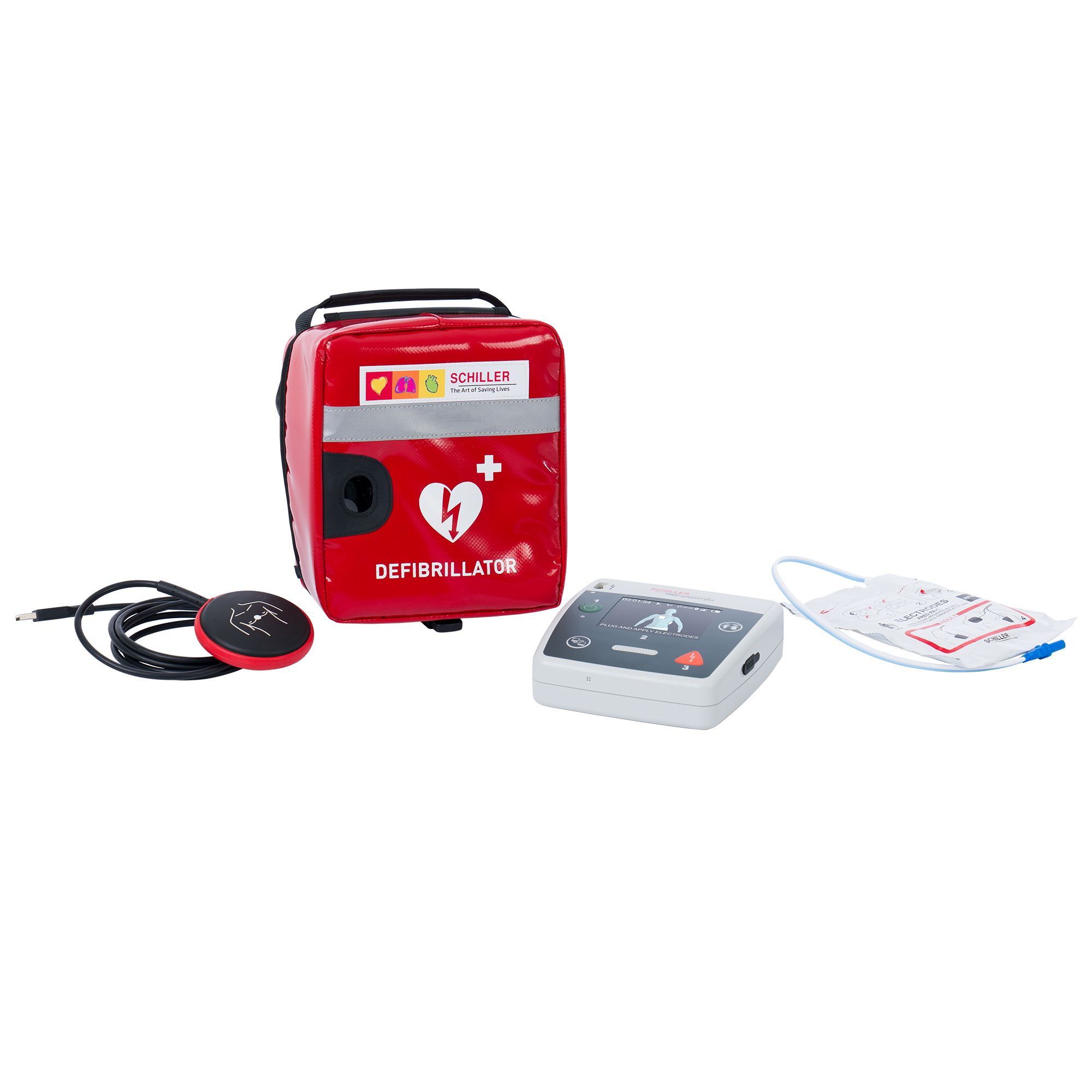

The Schiller FRED EasyPort Plus is a compact, lightweight, fully automatic defibrillator designed for portability without compromising functionality. With advanced features like real-time CPR feedback, Bluetooth data transmission, and a paediatric mode, it’s a powerful AED suitable for professionals, public responders, and high-risk individuals. However, like all medical devices, it requires proper maintenance to remain fully operational.
This troubleshooting guide provides detailed solutions for common issues, ensuring your FRED EasyPort Plus is always ready for life-saving emergencies.

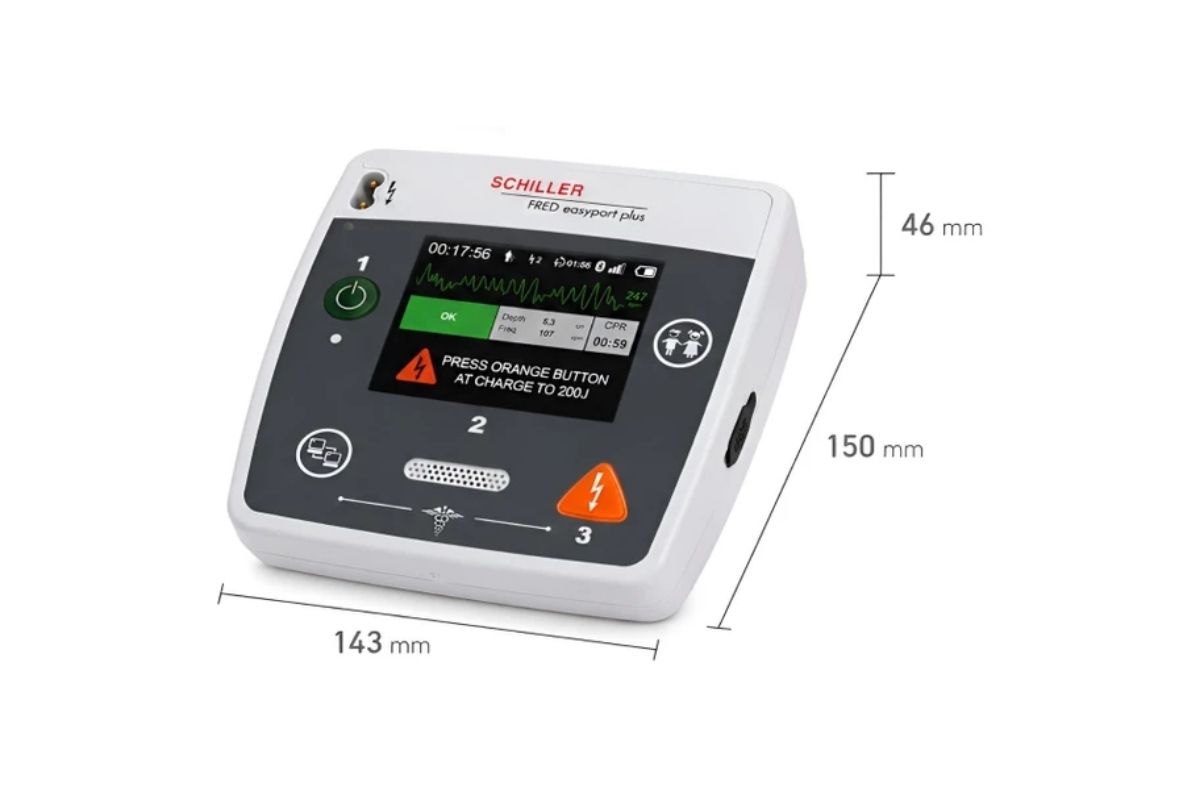

Key Features of the Schiller FRED EasyPort Plus Defibrillator
Before diving into troubleshooting, let’s highlight what makes this pocket-sized AED unique:
- Ultra-Compact & Lightweight – Weighs just 780g, making it the most portable AED in its class.
- Fully Automatic Shock Delivery – No manual intervention is required; the device delivers shocks if needed.
- Paediatric Mode with Single Electrode Pads – No need for separate paediatric pads; just press the child mode button.
- Real-time CPR Feedback – Metronome and compression guidance help rescuers deliver effective CPR.
- Data Transmission via Bluetooth & USB – Event logs can be shared with emergency responders and medical professionals.
- Automatic Self-Tests – Regular system checks ensure the device remains rescue-ready.
- Dual Battery Operation – Compatible with both primary and rechargeable batteries for greater flexibility.
For a full product overview, visit the Schiller FRED EasyPort Plus product page.
- 12 March 2025
Common Issues and Troubleshooting Solutions
1. Device Fails to Power On
Possible Causes:
- Battery is depleted or improperly inserted.
- Internal system failure.
Solutions:
- Remove and reinsert the Schiller EasyPort Plus Battery, ensuring it is installed correctly.
- If the issue persists, replace the battery available here.
- If the device still won’t turn on, contact Schiller technical support.
2. Self-Test Failure or Error Indicator
Possible Causes:
- Expired or faulty electrode pads.
- Battery failure.
- Device software issue.
Solutions:
- Replace expired Schiller Adult Pads with RFID Tag available here.
- Ensure the battery is fully charged and properly connected.
- Restart the device. If the problem continues, refer to the user manual.
3. Electrode Pads Not Recognised
Possible Causes:
- Pads are not properly attached to the patient.
- RFID tag not detected.
Solutions:
- Ensure electrode pads fully adhere to the patient’s chest.
- Use only Schiller-compatible pads available here.
- If the issue persists, try a new set of pads.
4. Shock Not Delivered
Possible Causes:
- The device has determined that a shock is not needed.
- Internal software malfunction.
Solutions:
- The Schiller EasyPort Plus AED only delivers a shock when a shockable heart rhythm is detected. Continue CPR if prompted.
- Restart the device if the issue persists.
5. Inaccurate CPR Feedback or Metronome Malfunctioning
Possible Causes:
- Poor pad connection.
- Motion interference affecting sensors.
Solutions:
- Ensure electrode pads are securely placed.
- Conduct CPR on a firm surface and avoid excessive patient movement.
6. Device Beeps Continuously When Not in Use
Possible Causes:
- Self-test failure or low battery warning.
Solutions:
- Check the device status indicator.
- Replace the battery if low available here.
7. Bluetooth or USB Data Transfer Fails
Possible Causes:
- Connection interference.
- Software incompatibility.
Solutions:
- Ensure the receiving device is compatible with Schiller data formats.
- Retry the connection in a low-interference environment.
8. Low Battery Warning Too Soon
Possible Causes:
- Battery is not fully inserted.
- Battery nearing end-of-life.
Solutions:
- Remove and reinsert the battery to ensure proper connection.
- If the issue persists, replace the battery available here.
9. Display Screen Too Dim or Flickering
Possible Causes:
- Low battery.
- Automatic brightness adjustment malfunction.
Solutions:
- Replace or recharge the battery.
- Restart the device and perform a self-test.
10. Device Exposed to Water or Excessive Dust
Possible Causes:
- The EasyPort Plus AED is rated IP44, meaning it can withstand some water spray but is not waterproof.
Solutions:
- Wipe the device dry immediately.
- If the device malfunctions, refer to the Schiller Extended Warranty available here.
11. Error Message: “Check Electrodes”
Possible Causes:
- Poor connection between pads and patient’s skin.
- Expired or dried-out pads.
Solutions:
- Ensure the pads have strong contact with bare skin.
- Replace expired pads available here.
12. Device Fails to Detect Paediatric Mode
Possible Causes:
- The child mode button is not engaged.
Solutions:
- Manually press the child mode button when treating a paediatric patient.
- Ensure the correct pads are used and replace if necessary.
13. Speaker Volume Too Low or No Sound
Possible Causes:
- Device software issue.
Solutions:
- Restart the device and check if the sound returns.
- If the issue persists, refer to the Schiller user manual.
14. Device Shuts Down Unexpectedly
Possible Causes:
- Battery is not fully inserted.
- Software error.
Solutions:
- Reinsert or replace the battery.
- Perform a manual self-test.
15. Device Stuck in Standby Mode
Possible Causes:
- Internal firmware error.
Solutions:
- Perform a hard reset following the manufacturer’s guidelines.
- If the problem persists, contact Schiller technical support.
Preventative Maintenance for Optimal Performance
Regular Checks:
- Inspect the battery and electrode pad status monthly.
- Perform a self-test to verify operational readiness.
- Ensure the AED is stored in a dry, temperature-controlled environment.
Storage Recommendations:
- Use the protective carry case for safe transport.
- Store at 15-25°C for optimal battery and electrode lifespan.
Software & Data Management:
- Regularly update event logs via Bluetooth or USB.
- Ensure AED event reports comply with UK data protection laws (GDPR).
Related Products & Accessories
By following this troubleshooting guide, you can ensure that your Schiller FRED EasyPort Plus Defibrillator remains fully functional and ready to perform in life-saving emergencies. For further assistance, visit Defib World or contact Schiller technical support.
