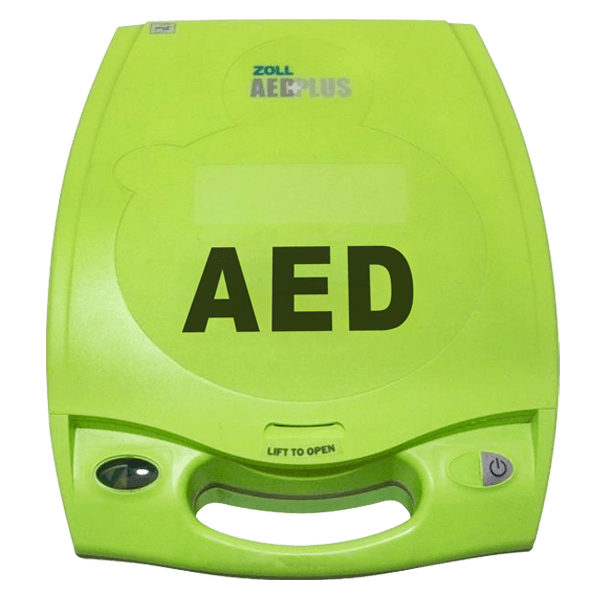

ZOLL AED Plus Semi-Automatic Defibrillator: Troubleshooting Guide to Keep Your Device Ready to Save Lives

Caitlin-Renèe Holmes

Published:8 November 2024

In an emergency, seconds count, and every moment you’re prepared to act could mean the difference between life and death. When it comes to sudden cardiac arrest, the ZOLL AED Plus Semi-Automatic Defibrillator is a trusted lifesaver with features designed to guide rescuers through CPR and defibrillation, even if they’re not medical professionals. However, ensuring your ZOLL AED Plus is always ready means staying on top of regular checks and troubleshooting any issues.

This guide walks you through some of the common challenges you may face with your AED, along with clear, actionable solutions to keep your device functioning optimally. Let’s dive in to ensure you’re always prepared to save a life.

Understanding the ZOLL AED Plus: Key Features to Keep in Mind

Before we get into troubleshooting, let’s highlight some unique features of the ZOLL AED Plus that make it a top choice:

Real CPR Help®: This feedback system guides you in real-time, helping maintain correct compression depth and rate during CPR.
One-Piece CPR-D-padz® Electrode: The pre-connected pad design reduces application errors and improves ease of use.
Long-Lasting Battery and Pads: With a five-year shelf life, the ZOLL AED Plus requires fewer replacements and maintenance checks, which means it’s designed to be reliable when you need it most.

Common ZOLL AED Plus Issues and How to Solve Them

1. Battery-Related Issues

Problem: The device won’t power on or shows a “low battery” indicator.

Solution:

Check Battery Orientation: Ensure each battery is inserted in the correct orientation. The ZOLL AED Plus uses a 10-battery setup, and all batteries must be oriented properly.
Use Lithium Batteries: Always use ZOLL-approved lithium batteries for optimal performance and longevity.
Regular Replacement: ZOLL AEDs require battery replacement every 5 years, but periodic testing and monthly checks are advised.
Battery Test: Run a manual battery test to confirm the power source.

2. Pad Connectivity and Adhesion Issues

Problem: The device displays “Check Pads” or fails to detect proper pad placement.

Solution:

Check Connection Points: Ensure pads are securely connected to the device’s electrode input.
Clean Skin Before Application: Moisture, body hair, or dirt can prevent pads from adhering correctly. Dry the chest area and trim hair if necessary.
Replace Expired Pads: Check expiration dates on pads. Replace them immediately if they’re past their due date.

3. Error Messages and Shock Failure

Problem: AED displays unexpected error messages or fails to deliver a shock.

Solution:

Clear Skin Obstructions: Ensure nothing obstructs pad placement or contact with the skin, including moisture or jewellery.
Stand Clear Warning: When instructed to “Stand Clear,” ensure all bystanders are not touching the patient to avoid shock interference.
Self-Test Diagnostics: Perform a self-test as outlined in the AED’s manual to diagnose any underlying issue if shock fails repeatedly.

4. Self-Test Failures

Problem: The AED’s self-test does not pass, or a “Service Needed” light appears.

Solution:

Run Manual System Test: If the automated self-test fails, initiate a manual system test to identify specific errors.
Internal Inspection: Look for any obvious signs of wear or damage to internal components and wiring. Contact ZOLL support if damage is suspected.
Contact Technical Support: If the self-test continues to fail, it may indicate a need for professional servicing.

5. Speaker and Voice Prompt Issues

Problem: Voice prompts are unclear, distorted, or not functioning.

Solution:

Speaker Cleaning: Dust or dirt can accumulate, affecting sound quality. Clean the speaker grill with a soft brush.
Restart the AED: A simple reset may resolve sound issues.
Volume Check: Confirm that the volume setting is appropriately adjusted for clarity.
Professional Repair: Persistent sound issues may require authorised repair to replace faulty audio components.

8 November 2024

6. Temperature and Environmental Exposure

Problem: The AED has been exposed to extreme temperatures or environmental conditions.

Solution:

Store in a Controlled Environment: Keep the AED in a dry, temperature-controlled area between 0°C and 50°C.
Cool the Device if Overheated: Allow it to cool before conducting a function test if it feels hot.
Inspect for Environmental Damage: Look for signs of temperature-related damage, such as battery swelling or component warping, and arrange for service if damage is found.

7. Electrode Pad Drying or Gel Buildup

Problem: Pads are dry or show gel buildup, affecting adherence.

Solution:

Replace Pads Immediately: Gel buildup or dryness indicates the pads are no longer viable and must be replaced.
Store Pads Properly: Ensure pads are stored in their sealed packaging until needed to prevent drying out.

8. Display Screen Issues

Problem: The screen is unresponsive or showing distorted visuals.

Solution:

Reset the AED: A reset can often resolve display issues.
Check for Screen Damage: If the screen is physically damaged, contact technical support for screen repair or replacement.
Run System Check: Perform a manual system check to ensure the device’s operational integrity.

9. Device Overheating During Extended Use

Problem: The AED feels warm after continuous use or testing.

Solution:

Allow for Cool-Down: After extended use or testing, let the AED cool naturally.
Limit Repeated Testing: Excessive testing or continuous usage without breaks can lead to overheating.

10. AED Won’t Charge Properly or Keeps Powering Off

Problem: The device keeps powering off unexpectedly or fails to maintain charge.

Solution:

Battery Check: Ensure all batteries are within expiration and seated securely.
Verify Battery Contacts: Clean any debris from battery contacts that might interrupt power flow.
Seek Professional Service: Persistent power-off issues may indicate an internal power component malfunction that requires repair.

11. LED Indicator Malfunction

Problem: Status LEDs are not functioning or show incorrect colours.

Solution:

Test LED Response: Run a system test to reset the LED indicators.
Check Manual for LED Status: Reference the AED’s manual for the meaning of LED signals. In some cases, lights may indicate service needs.
Service Required: If LED problems persist, the AED may need servicing.

12. Shock Button Malfunction

Problem: The shock button does not respond or seems jammed.

Solution:

Test the Button in Self-Test Mode: Activate self-test mode to assess if the button issue is internal or a user error.
Clear Obstructions: Ensure nothing obstructs the shock button or surrounding areas.
Contact ZOLL for Repair: If the button remains unresponsive, professional service is necessary to resolve the issue.

13. Physical Damage or Wear

Problem: Cracks, dents, or visible wear on the AED casing or accessories.

Solution:

Inspect for Functional Integrity: Superficial damage might not affect functionality, but any damage should be monitored.
Replace Damaged Parts: Order new parts if damage affects battery covers, pad connections, or buttons.
Professional Assessment: If structural damage is extensive, a full assessment by ZOLL is recommended.

14. Memory or Data Retrieval Issues

Problem: Unable to retrieve or download data logs after use.

Solution:

Use ZOLL-Compatible Software: Ensure you are using the correct ZOLL software for data retrieval.
Check Cable Connections: Verify that the AED’s data ports and connecting cables are properly secured.
Contact Technical Support: Persistent issues with data access may require technical assistance.

15. Service Required Light Remains On

Problem: The “Service Required” light is continuously illuminated.

Solution:

System Reset: A reset may temporarily clear the service light.
Run Full Diagnostic: Conduct a thorough diagnostic check to identify specific issues triggering the light.
Schedule Maintenance: If the service light remains on, professional servicing is required to ensure full operational integrity.

Essential Maintenance Practices for ZOLL AED Plus

Regular maintenance is key to ensuring your ZOLL AED Plus is in peak condition when an emergency strikes. Here’s a quick checklist:

Monthly Visual Inspections: Check the AED status indicator light monthly. If it’s not green, troubleshoot or contact customer support.
Battery and Pad Checks: Replace the batteries every five years or if the low-battery indicator lights up. Check the expiration date on pads and replace them if necessary.
Self-Test Function: Many ZOLL AED Plus models come with a self-test function that you can activate to ensure all components are functioning properly. Follow the manual’s guidance on performing a self-test.

When to Seek Professional Assistance

In some cases, your AED may require professional servicing. Contact a certified service provider if:

The AED fails multiple self-tests or displays persistent error messages.
You notice physical damage to the device or its accessories.
You’re uncertain about any aspect of the AED’s status or functionality.

Helpful Link: For more information on maintaining your ZOLL AED Plus, visit our ZOLL AED Plus product page for resources and support.

The Critical Role of AED Readiness: Why Regular Maintenance Matters

Ensuring that your ZOLL AED Plus is ready to deploy isn’t just about following regulations – it’s about being prepared to save a life at a moment’s notice. When maintained properly, your AED can perform reliably, providing real-time CPR feedback and delivering the shock that could make all the difference.

With a bit of regular care and attention, your ZOLL AED Plus will be ready whenever it’s needed. Remember, every step you take to maintain your AED brings peace of mind and a safer environment for everyone.

Take Action Today: Perform your AED maintenance check, review your troubleshooting knowledge, and ensure you’re ready to respond when it matters most.
